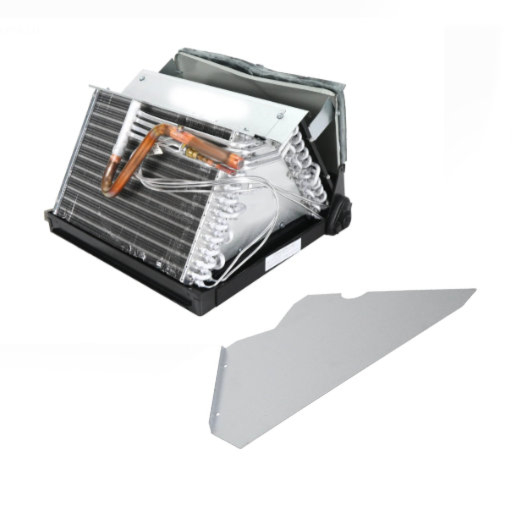

COL16276 Trane Aluminum Evaporator Coil Assembly with Pan

The COL16276 Trane Aluminum Coil Assembly with Pan is a genuine OEM replacement part engineered for direct-fit installation in compatible Trane and American Standard HVAC systems. Manufactured by Ingersoll Rand / Trane to factory specifications, this aluminum evaporator coil assembly restores peak heat transfer efficiency and reliable condensate drainage — with no field modification required beyond the liquid line noted below.

Key features:

• Genuine Trane OEM part — ensures exact fit and full compatibility
• Aluminum fin and casing construction — lightweight, corrosion-resistant, and thermally efficient
• Integrated pan for effective condensate collection and drainage
• Factory-built to Trane quality standards
• Suitable for commercial and residential Trane and American Standard HVAC applications

Important factory notes:

• Liquid line: This coil requires a field-fabricated liquid line. Retain the original restrictor (FCCV) from the existing coil for reinstallation in the new unit.
• TXV / expansion valve not included: The thermal expansion valve is sold separately. Refer to your air handler model number to confirm the correct valve before ordering.

Compatibility: The COL16276 is designed as a replacement coil assembly for compatible Trane and American Standard air handlers and cased/uncased cooling coil units. Verify fitment using your system's service manual or consult an authorized Trane distributor before ordering. Installation by a licensed HVAC technician is recommended.

Choosing a genuine Trane OEM aluminum replacement coil protects your system's rated efficiency, supports manufacturer warranty validity, and reduces the risk of premature failure associated with non-OEM alternatives. To verify that COL16276 is the correct part for your unit, please contact us with the model and serial number of the unit it’s going into for confirmation.
