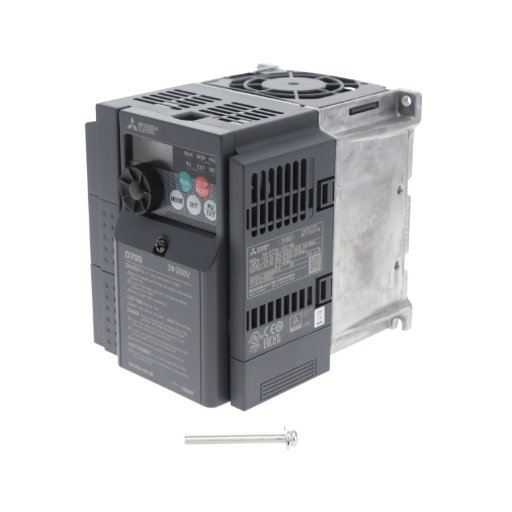

FR-D720-100-NA Mitsubishi VFD

The Mitsubishi Electric FR-D720-100-NA is a compact and cost-effective Variable Frequency Drive (VFD) from the FREQROL FR-D700 Series, designed for straightforward motor speed control in light industrial and commercial applications.

Rated at 3HP (2.2kW) with a 10-amp output, this drive accepts three-phase input voltage from 200 to 240VAC, making it compatible with standard 208V and 230V power systems. The output frequency range of 0.2 to 400Hz provides reliable speed control across a broad range of motor applications.

The FR-D700 Series is Mitsubishi Electric's dedicated micro-inverter line, offering an excellent balance of simplicity, reliability, and performance for applications that don't require the advanced features of higher-tier drives. Key built-in functions include PID control, multi-speed operation, slip compensation, optimum excitation control, automatic restart after power failure, and offline auto-tuning for quick and accurate motor setup right out of the box.

Key Specifications:

• Input Voltage: 200–240VAC, 3-Phase
• Power Rating: 3HP / 2.2kW
• Output Current: 10A
• Output Frequency: 0.2–400Hz
• Communication: Modbus RTU
• Enclosure: IP20 / UL Type 1
• Series: Mitsubishi FREQROL FR-D700

The NA designation for FR-D720-100-NA VFD indicates this unit is built to US, Canadian, and Mexican specifications, with an IP20 (UL Type 1) enclosure rating suitable for panel or cabinet installation. Communication is handled via Modbus RTU, allowing easy integration into existing automation and control networks.
