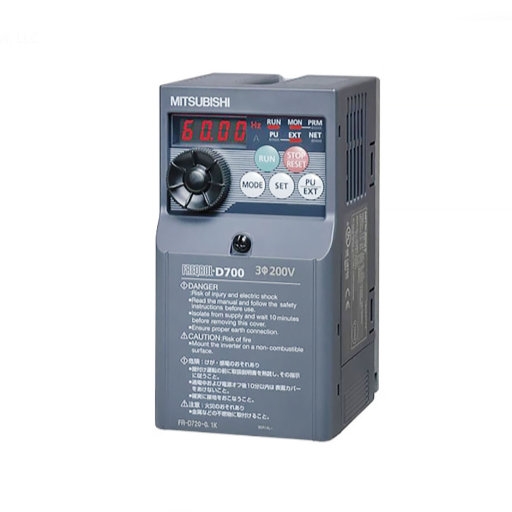

FR-D740-036-NA Mitsubishi VFD

The Mitsubishi Electric FR-D740-036-NA is a compact and reliable Variable Frequency Drive (VFD) from the FREQROL FR-D700 Series, built for simple and effective motor speed control in light industrial and commercial environments.

Rated at 2HP (1.5kW) with a 3.6-amp output, this drive accepts three-phase input voltage from 380 to 480VAC, making it well-suited for standard 400V, 415V, and 480V industrial power systems. The output frequency range of 0.2 to 400Hz delivers dependable speed control across a wide range of motor types and load profiles.

The NA designation confirms this unit meets US, Canadian, and Mexican specifications, with an IP20 (UL Type 1) enclosure rating for panel or cabinet mounting. Modbus RTU communication is built in, enabling seamless integration into PLCs, SCADA systems, and other automation networks without additional hardware.

Key Specifications:

• Input Voltage: 380–480VAC, 3-Phase
• Power Rating: 2HP / 1.5kW
• Output Current: 3.6A
• Output Frequency: 0.2–400Hz
• Communication: Modbus RTU
• Enclosure: IP20 / UL Type 1
• Series: Mitsubishi FREQROL FR-D700

As part of the FR-D700 micro-inverter series, the FR-D740-036-NA includes a strong set of standard features including PID control, multi-speed operation, slip compensation, optimum excitation control, automatic restart after instantaneous power failure, and offline auto-tuning, all packaged in a compact footprint ideal for space-constrained installations.
