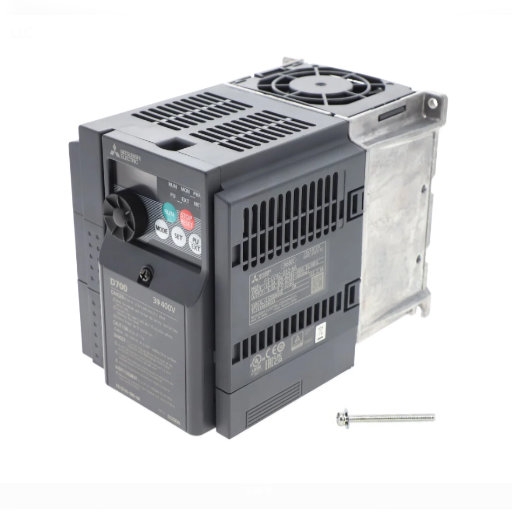

FR-D740-080-NA Mitsubishi VFD

The Mitsubishi Electric FR-D740-080-NA is a capable and compact Variable Frequency Drive (VFD) from the FREQROL FR-D700 Series, designed for reliable motor speed control in a wide range of light to medium industrial applications.

Rated at 5HP (3.7kW) with an 8-amp output, this drive accepts three-phase input voltage from 380 to 480VAC, making it compatible with standard 400V, 415V, and 480V industrial power systems. The output frequency range of 0.2 to 400Hz provides broad flexibility for motor speed control across various load types.

The NA designation confirms this drive meets US, Canadian, and Mexican specifications. It features an IP20 (UL Type 1) enclosure rating for panel or cabinet installation, and built-in Modbus RTU communication for seamless integration into existing automation, PLC, and SCADA environments.

Key Specifications:

• Input Voltage: 380–480VAC, 3-Phase
• Power Rating: 5HP / 3.7kW
• Output Current: 8A
• Output Frequency: 0.2–400Hz
• Communication: Modbus RTU
• Enclosure: IP20 / UL Type 1
• Series: Mitsubishi FREQROL FR-D700

Along with the compact footprint characteristic of the FR-D700 micro-inverter series, the FR-D740-080-NA includes a well-rounded set of built-in functions including PID control, multi-speed operation, slip compensation, optimum excitation control, regeneration avoidance, automatic restart after power failure, and offline auto-tuning, making it a practical choice for pump, fan, conveyor, and other variable-speed applications.
